SID4 XHR
Spectral Range VIS - NIR (400 - 1100 nm)

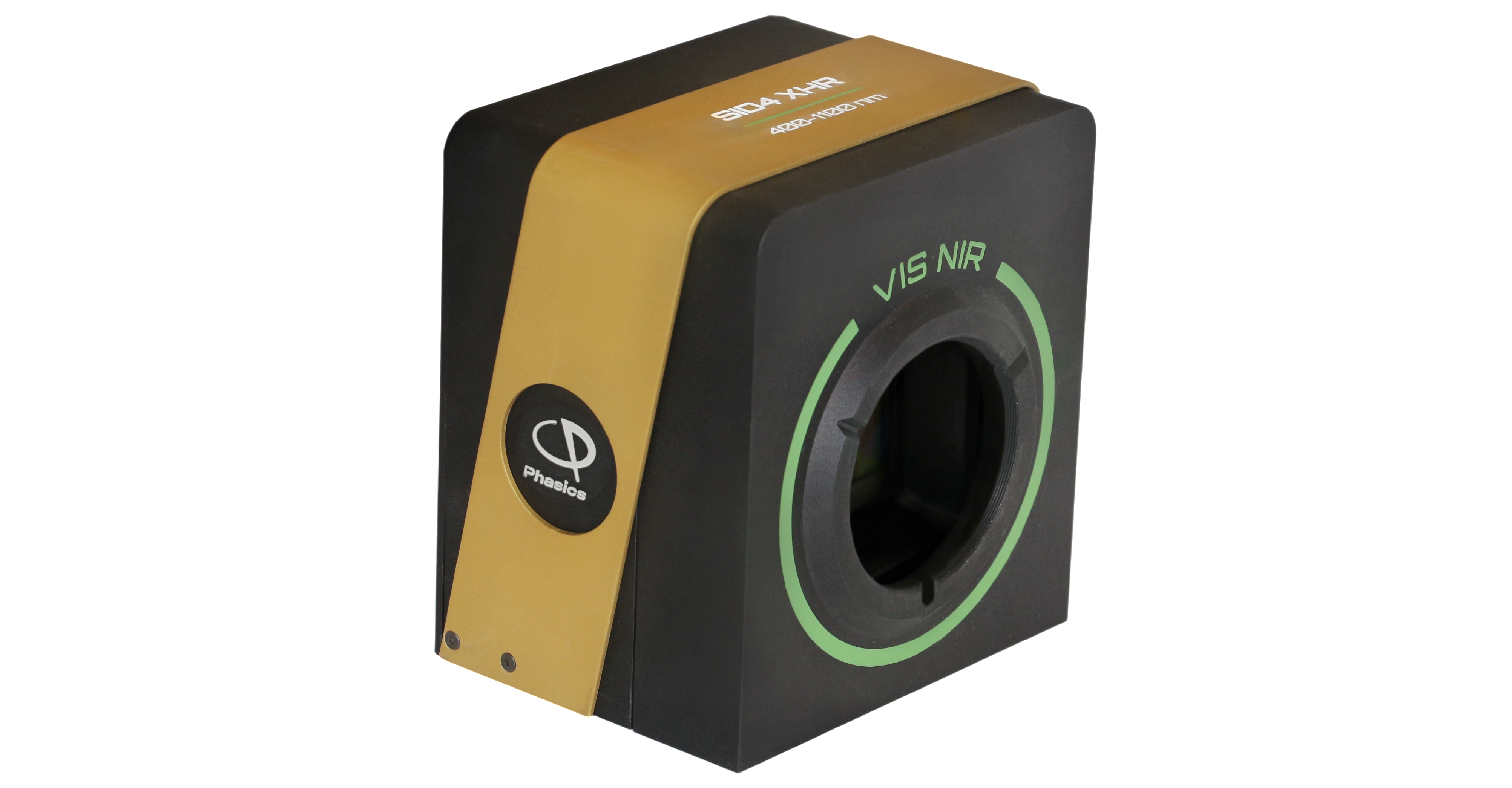

SID4 XHR is a large aperture, extremely high resolution wavefront sensor for advanced optics and laser metrology. It combines simple implementation with a large active area and 1400 × 1000 phase sampling, enabling live full field measurements on large optical components, expanded beams and wide field assemblies. Optimized for surface inspection, high spatial frequency defect detection and optical component characterization, the SID4 XHR supports applications from lenses and objectives to aspherical and freeform optics.
Key features
- Large aperture dimension: 38.64 x 27.60 mm²
- Extremely high phase sampling: 1400 x 1000
- Achromaticity
Specifications
SID4-XHR
| Wavelength range | 400 - 1100 nm |
| Aperture dimension | 38.64 x 27.60mm² |
| Spatial resolution | 1400 x 1000 |
| Phase sampling | 27.6 μm |
| Phase resolution | 6 nm RMS |
| Dimensions | 114 x 105 x 110 mm |
| Weight | ~1kg |
Downloads
Related products
SID4
Cost-effective, high resolution wavefront sensor
Our entry-level yet high-resolution wavefront sensor covering the visible and NIR range, the SID4 is the perfect versatile tool for ...
Kaleo Kit
Fully modular metrology solution from UV to IR
Kaleo Kit is a modular system for optics qualification. It combines a broad range of compatible modules, that let you ...
Kalas
Fully modular solution for beams qualification with high accuracy
Kalas is a modular solution that integrates all the necessary components to characterize beams of up to 127mm (5’’) with ...
R-Cube Illumination module
Illumination source add-on for double-pass configuration
The R-Cube is an add-on for easy double-pass measurement with Phasics' wavefront sensors. It applies to mirror and large-lens aberration ...
SID4 UHR
Ultra-high resolution wavefront sensor
SID4 UHR Ultra-High-Resolution wavefront sensor is adapted for optics metrology needs. It combines the SID4 ease of implementation with high ...
