Nanoplasmonics and photothermal imaging

Quantitative phase microscopy applied to photothermal imaging

The thermal imaging solutions proposed by Phasics uses a high-resolution quantitative phase imaging (QPI) camera compatible with any optical microscope and with any laser module. The thermal imaging microscopy technique allows the study of a large variety of applications in cell biology, physics, and chemistry.

Thermal imaging using Quadriwave lateral Shearing Interferometry (TIQSI) is a non-invasive thermal microscopy technique, developed by Dr. G. Baffou from Institut Fresnel in collaboration with Phasics, which enables characterizing the heat generation arising from illuminated nanostructures at the nanoscale level. TIQSI is based on the measurement of the thermal-induced refractive index variation of a known medium via the wavefront measurement which is converted into a temperature variation value.

  • ▽ Measurement principle

    Thermal imaging with QWLSI measurement principle

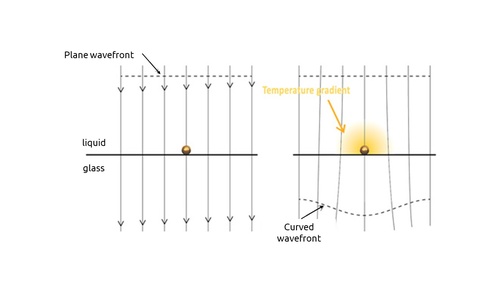

    The local temperature gradient around a heated sample modifies the refractive index distribution of the surrounding medium. An incoming optical wavefront is thus curved when going through the sample. By measuring the wavefront deformation thanks to our SID4 camera, it is possible to calculate the corresponding temperature variation δT.

  • ▽ Measurement setup

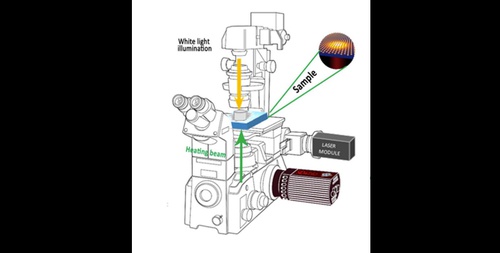

    Thermal imaging measurement setup with QWLSI

    In this representation, the heating device assembly consists of a nanostructured plate illuminated by a laser light source. The sample gets heated, and white-light illumination is used to provide the quantitative phase image and thus the temperature map.

    The TIQSI setup includes:
    – A conventional white-light microscope
    – A SID4 wavefront sensor
    – A heating device assembly (laser)

  • ▽ From phase to temperature

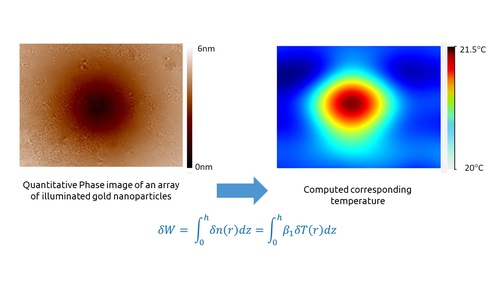

    From quantitative phase to temperature calculation steps

    The variation of the wavefront δW results from the variation of the refractive index δn. By knowing the relation between the refractive index and the temperature, the temperature variation value δT is derived from δW via an inversion problem algorithm.



Measurement Examples

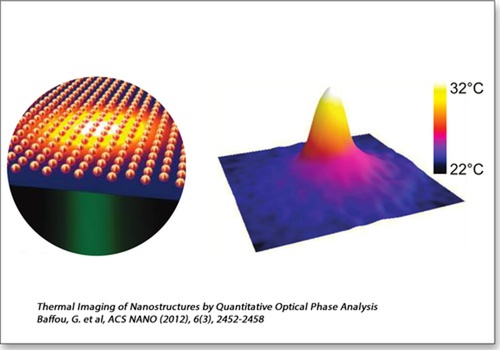

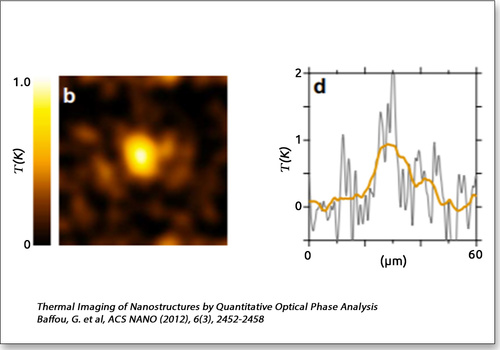

Example of  temperature measurement with TQSI

Live temperature imaging

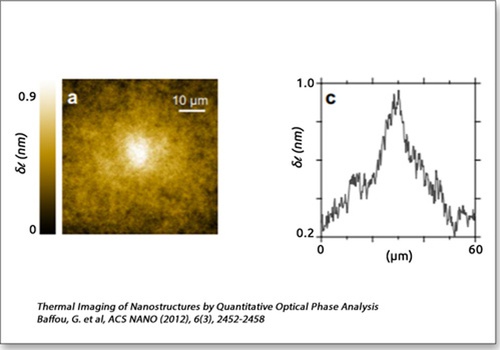

Optical path difference measured with QWLSI created by an heated gold nanoparticle

Thermal-induced phase

From OPD the temperature map is calculated

Calculated temperature

Advantages

Easy integration

  • Reliable over time
  • Widefield technology, no scanning
  • Compatible with any optical microscope

Unrivalled performances

  • Temperature sensitivity: 0.1K
  • Live temperature imaging
  • T°variation from ΔT=0k to more 200k

Powerful approach

  • Diffraction-limited spatial resolution
  • Non-invasive and label-free imaging
  • Spatially and temporally localized
