State of the art wavefront sensing solutions supporting challenging projects

Free-space optical communication, astronomical observatories, defense & space missions

Aerospace | Defense | FSOC | Astronomy

Defense, aerospace, free-space optical communication and astronomical telescope projects require high-end optical metrology solutions. Phasics proposes off-the-shelf and custom-made wavefront sensors and optical test benches to address such challenging wavefront measurement requirements.

Astronomical observatory

Astronomy

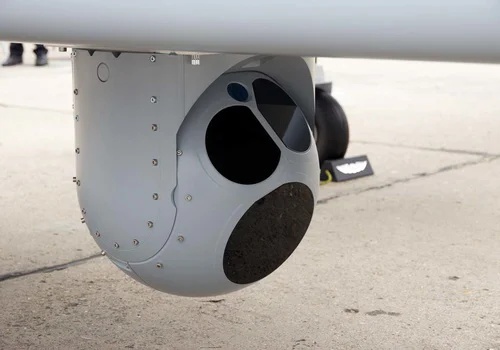

optical system for vision - defense application

Defense

Satellite over earth

Aerospace

Free space optical communications satellites constellation

Free-space optical communication

Related Products

Phasics SID4 UV HR (ultra-violet high resolution) wavefront sensor

SID4 UV HR

UV wavefront sensors sensitive down to 190 nm

Based on Phasics' patented technology, the SID4 UV HR wavefront sensor offers both an unrivalled high resolution (512 x 512 measurement points) and a very high sensitivity (2 nm RMS) in the ultraviolet spectrum ...

Phasics SID4 SWIR HR wavefront sensor

SID4 SWIR HR

High resolution SWIR wavefront sensor

The SID4 SWIR HR wavefront sensor integrates Phasics' patented technology with an InGaAs detector. Thanks to its ultra-high spatial resolution (160 x 128 phase pixels) and high sensitivity, it offers accurate wavefront measurement from ...

Phasics SID4 HR wavefront sensor

SID4 HR

High resolution wavefront sensor

The SID4 HR brings ultra-high phase sampling (416 x 360) and high dynamic range (500 µm PV) to the most demanding wavefront measurement applications. Its large aperture and extreme wavefront sensitivity makes it perfectly ...

Phasics SID4 UV wavefront sensor

SID4 UV

Cost-effective, high resolution UV wavefront sensor

Bringing high-resolution wavefront sensing as low as 190 nm, the SID4 UV is perfectly suited for UV optics testing, UV laser characterization (used in lithography or semiconductor applications), and surface inspection of lenses and ...

Phasics SID4 wavefront sensor

SID4

Cost-effective, high resolution wavefront sensor

Our entry-level yet high-resolution wavefront sensor covering the visible and NIR range, the SID4 is the perfect versatile tool for any laser or optical metrology application.

Phasics SID4 HR Vacuum wavefront sensor

SID4 HR V

Vacuum compatible down to 10-6 mbar & high resolution

The SID4 HR V is the first off-the-shelf vacuum-compatible wavefront sensor on the market, and opens new horizons for adaptive optics in high-energy laser facilities. Measure wavefront in-situ in actual experimental conditions, characterize laser ...

Phasics SID4 SWIR wavefront sensor

SID4 SWIR

Cost-effective short wave IR wavefront sensor

The SID4 SWIR wavefront sensor integrates Phasics' patented technology with an InGaAs detector. Thanks to its high spatial resolution (80 x 64 phase pixels) and high sensitivity, it offers accurate wavefront measurement from 900 ...

Phasics SID4 eSWIR wavefront sensor

SID4 eSWIR

High resolution extended SWIR wavefront sensor

The SID4 eSWIR wavefront sensor integrates Phasics' patented technology with a T2SL detector and is the only high-resolution wavefront sensor covering the extended SWIR range from 1.2 to 2.2 µm. SID4 eSWIR is an ...

Phasics SID4 DWIR wavefront sensor

SID4 DWIR

Dual band wavefront sensor for the 3 - 5 µm and 8 - 14 µm bands

The SID4 DWIR is the first off-the-shelf high-resolution wavefront sensor for dual-band infrared from 3 to 5 µm and 8 to 14 µm. It is well suited to characterize IR optics, blackbody sources, 3.39 ...

Phasics R-Cube illumination module for SID4 wavefront sensors

R-Cube Illumination module

Illumination source add-on for double-pass configuration

The R-Cube is an add-on for easy double-pass measurement with Phasics' wavefront sensors. It applies to mirror and large-lens aberration measurement and helps with calibrating optical test systems or the downsizing telescope in adaptive ...

Phasics Kaleo MultiWAVE test station

Kaleo MultiWAVE

Cost-effective, dynamic interferometer at any wavelength

Phasics is innovating in optical metrology with a new instrument able to measure both transmitted and reflected wavefront error (TWE/RWE). Coated and uncoated optics can be qualified over a diameter of 5.1 inches (130 ...

image for Kaleo IR

Kaleo IR

MTF & aberrations in a single shot in NIR, SWIR, MWIR & LWIR

The Phasics Kaleo IR optical test bench makes infrared lens quality control simple. MTF is obtained in a single shot at all frequencies with no need for scanning or complex alignment. Wavefront aberrations are ...

Phasics Custom made optical test stations

Custom optical test bench

Custom made optical test station to answer your needs

Challenging projects might require custom-made wavefront metrology solutions. The Phasics team develops customized optical test benches and machines built in answer to our clients' project requirements. Phasics' strong team of highly skilled optical, mechanical, ...
